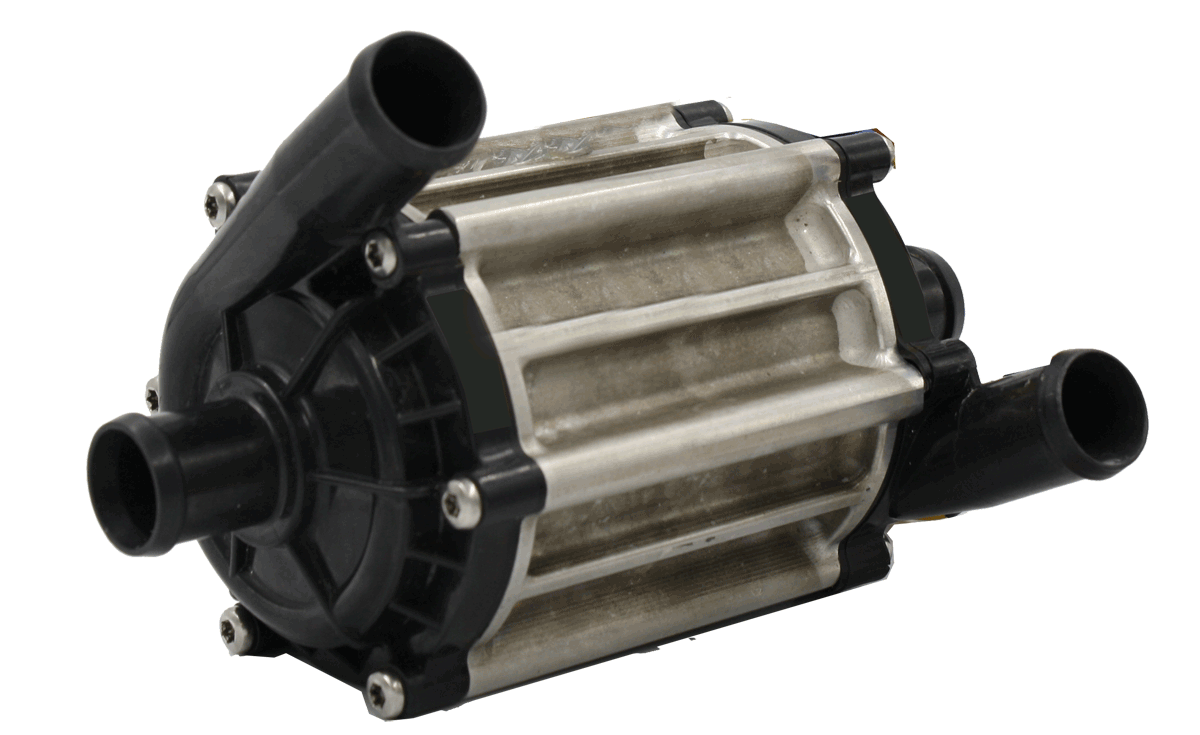

D60 Speed Regulation Double Ended Twin Motor Pump
General Specification
| Type | Three Phase Brushless Twin Speed Control |
|---|---|
| Structure | Twin Inner rotor single bearing |
| Ambient Temp | -40 ～ 125℃ |
| Ambient Humidity | <95%RH |
| IP Grade | IP67 |
| Insulation Class | H |
| Noise | 45 Db |
| Liquid | Water, anti freeze |
| Speed range | 10% - 100% each end independently controllable |
| Motor Type | PMSM |
| Fluid Temperature | -40℃～ 100℃ |
| Speed control | PWM Duty, TTL level, 20-1000 HZ frequency |
Performance Data
Note that with this range of twin ended pumps, each pump can be controlled independently. It is also possible to make special products with different pumps on each end to cater for requirements where a different flow is required. This is a highly configurable range, so don't hesitate to contact us to see how we can match your requirements.
We can also produce these pumps for special voltages, and much higher voltages such as 320 volts DC.
| Model Units | Units | D6012V60WBA02 | D6024V60WBA02 | D6012V70WBA03 | D6024V70WBA03 | D6012V90WBA04 | D6024V90WBA04 | D6012V115WBA05 | D6024V115WBA05 | D6012V140WBA11 | D6024V140WBA11 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Volts | 12 | 24 | 12 | 24 | 12 | 24 | 12 | 24 | 12 | 24 |
| Rated Current(per motor) | Amps | 5 | 2.5 | 5.8 | 2.9 | 7.5 | 3.75 | 9.6 | 4.8 | 11.6 | 5.8 |
| Rated Power(per motor) | Watts | 60 | 60 | 70 | 70 | 90 | 90 | 115 | 115 | 140 | 140 |
| Maximum Flow Rate per pump | L/min | 38 | 38 | 43 | 43 | 43 | 43 | 50 | 50 | 51.7 | 51.7 |
| Maximum Head | Metres | 7 | 7 | 8 | 8 | 7.5 | 7.5 | 10 | 10 | 14.7 | 14.7 |
| Duty Point for each pump | L/min metres | 20/6.7 | 20/6.7 | 25/6.15 | 25/6.15 | 30/5.85 | 30/5.85 | 30/7.8 | 30/7.8 | 30/7.8 | 30/7.8 |
| Weight | Kg | Approx 1.3 | Approx 1.3 | Approx 1.3 | Approx 1.3 | Approx 1.3 | Approx 1.3 | Approx 1.3 | Approx 1.3 | Approx 0.85 | Approx 0.85 |
| Length | mm | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 160 | 160 |
