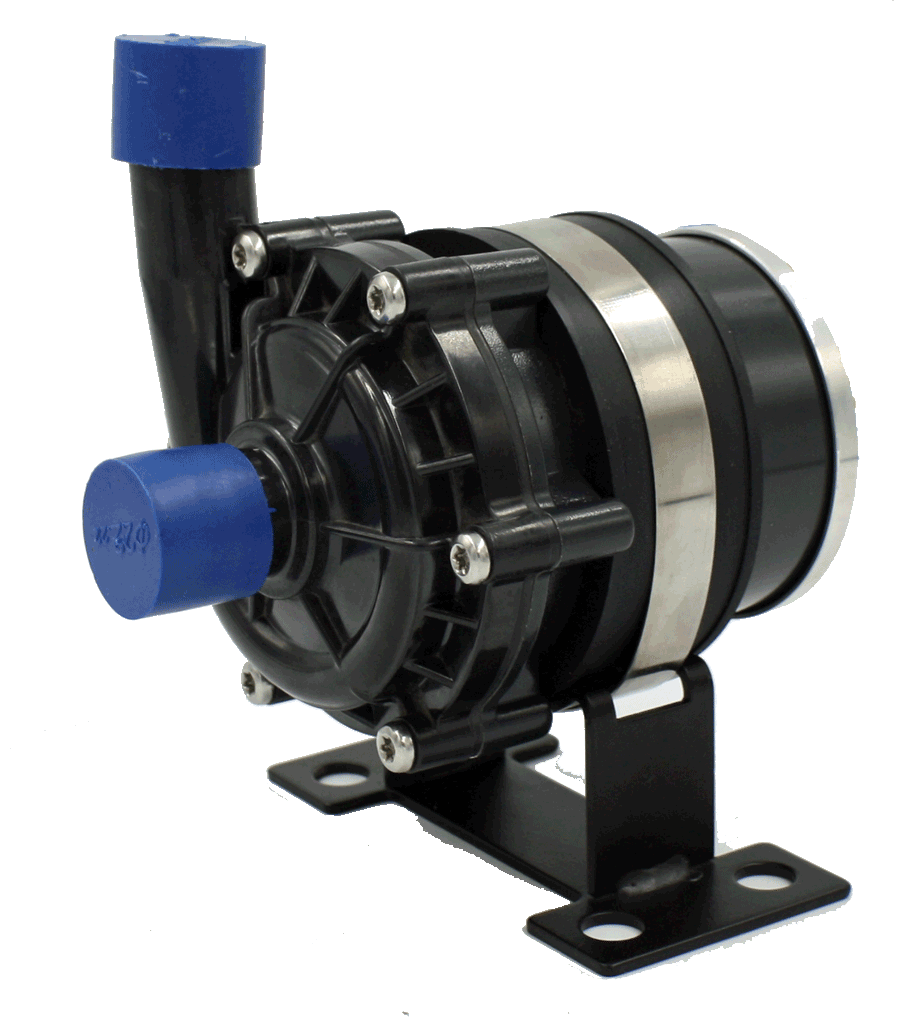

P60 Constant Speed
General Specification
| Type | Three Phase Brushless Constant Speed |
|---|---|
| Structure | Inner rotor single bearing |
| Ambient Temp | -40 ～ 125℃ |
| Ambient Humidity | <95%RH |
| IP Grade | IP67 |
| Insulation Class | H |
| Noise | 45 Db |
| Liquid | Water, anti freeze |
| Speed range | 100% |
| Motor Type | PMSM |
| Fluid Temperature | -40℃～ 100℃ |
Performance Data
| Model Units | Units | P6012V60WAB01 | P6024V60WAB01 | P6012V90WAB08 | P6024V90WAB11 | P6012V115WAB09 | P6024V115WAB09 | P6012V135WAB10 | P6024V135WAB13 |
|---|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Volts | 12 | 24 | 12 | 24 | 12 | 24 | 12 | 24 |
| Rated Current | Amps | 5 | 2.5 | 7.5 | 3.75 | 9.5 | 4.8 | 11 | 5.6 |
| Rated Power | Watts | 60 | 60 | 90 | 90 | 115 | 115 | 135 | 135 |
| Maximum Flow Rate | L/min | 38 | 38 | 42 | 42 | 46 | 46 | 51.6 | 51.6 |
| Maximum Head | Metres | 7 | 7 | 7.5 | 7.5 | 8.88 | 8.88 | 13.8 | 13.8 |
| Duty Point | L/min metres | 20/6.7 | 20/6.7 | 30/5.85 | 30/5.85 | 30/7.8 | 30/7.8 | 30/7.8 | 30/7.8 |
| Weight | Kg | Approx 0.59 | Approx 0.59 | Approx 0.59 | Approx 0.59 | Approx 0.59 | Approx 0.59 | Approx 0.59 | Approx 0.59 |
| Length | mm | 127 | 127 | 127 | 127 | 127 | 127 | 127 | 127 |
