ELECTRIC MOTORS
At 3X Motion, we have a manufacturing capacity for almost five million motors a year. We make a wide range of different fundamental types of motor and our motors are used in a colossal range of different applications. You might come across our motors everywhere you go: there's one in your e bike you use to get to work. Then there's one in your forklift truck and there's one controlling the angles of the solar panel that powers it. There's one in the automatic door that opened to let you in and one in the medical equipment that checks your health.
Our extensive ranges of motors are highly customisable. This page gives a good guide to our capabilities, but if you are looking for something slightly different, let us know. We might well still be able to help.
OUR RANGES OF MOTORS

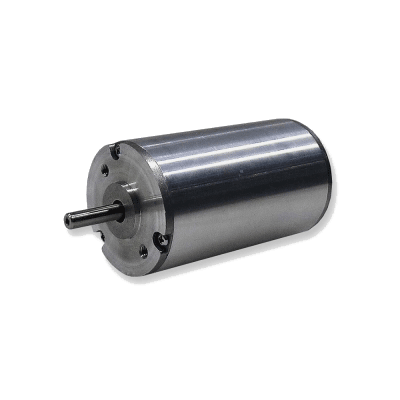

BLDC Motor
Brushless DC Motors Diameters between 28 and 130mm
12, 24, 48 and 310 volt options
0.007 to 7 Nm and up to 8000 rpm
Hybrid Stepper Motor
Motor Diameter 20mm to 90mm
Current 0.1 to 6 Amps
Holding Torque 1.2 Nm to 1300 Nm

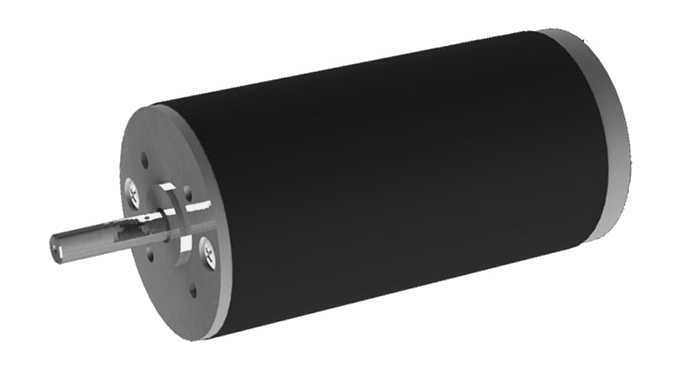

Brushed DC Motor
Motor Diameter 40 to 110mm
Voltages available 12, 24, 40 and 48 volts
Torque from 0.033 Nm to 1.6 Nm and rated speeds up to 4950 rpm

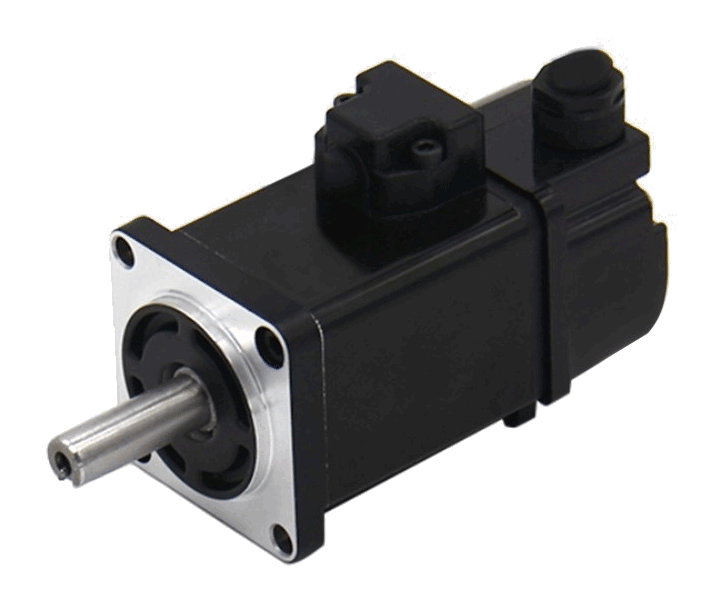

Servo Motor
Motor Diameters 40mm to 142mm
24, 48 or 220 volts
Rated torque 0.16 to 20 Nm

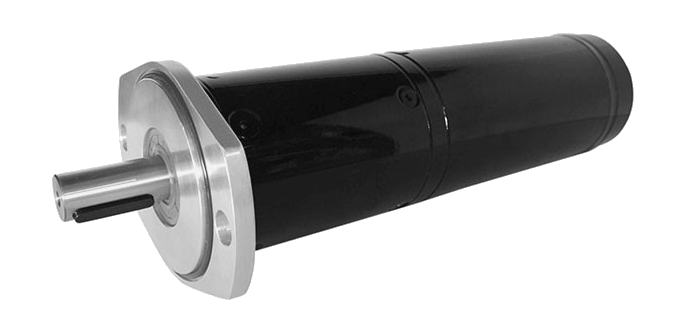

Brushed DC Geared Motor
Diameters 63 or 90mm
24 volts
Rated torques 40 to 400 Nm and rated speeds 1.5 to 40 rpm

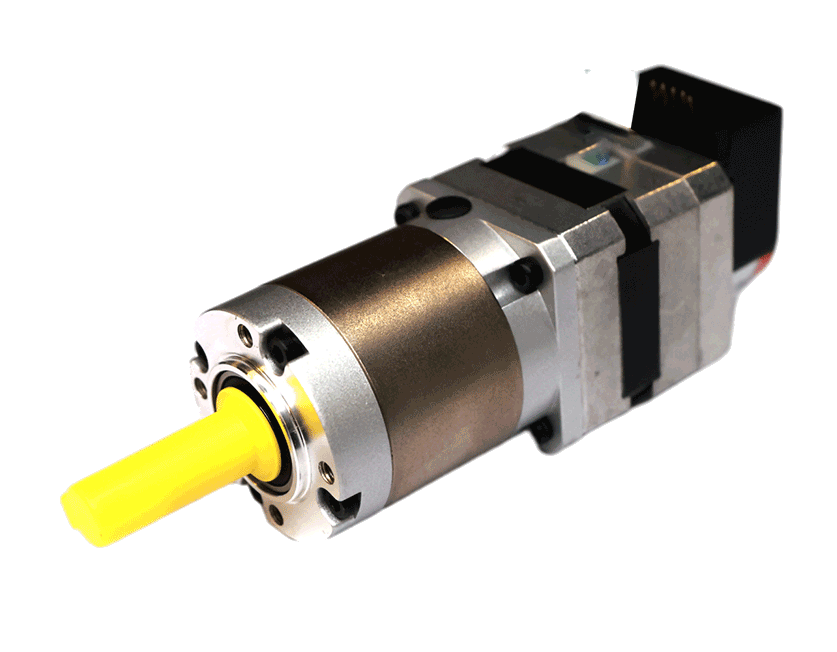

BLDC Geared Motor
Rated voltages 12, 24, 48 and 240 volts
Rated torque from 0.33 to 85 Nm
Motor Diameter 42 to 90mm
